Product introduction:

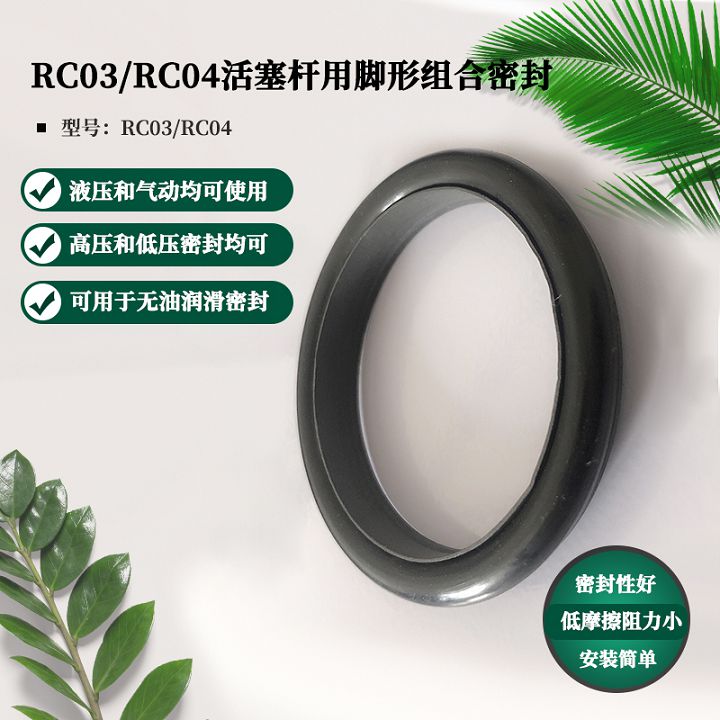

RC03/RC04 piston rod (shaft) foot shaped combined seal is composed of a PTFE and its composite foot shaped seal ring and an O-ring, which is suitable for hydraulic and pneumatic reciprocating one-way seals. According to the different matching O-rings, they are divided into RC03 series and RC04 series (matching GB1235 series O-rings). The thin lip design is adopted for the sealing ring, which has good following compensation ability, so the sealing performance is good. Wedge groove of foot shaped sealing surface improves sealing performance and anti pollution ability, and reduces friction. The structural design of the foot seal also improves the pressure resistance of the seal. Generally, it cannot be installed in closed groove.

Product features:

1. Hydraulic and pneumatic;

2. Both high pressure and low pressure seals have good sealing performance;

3. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping;

4. Long life, can be used for oil-free lubrication seal;

5. It can be used for high pressure and ultra-high pressure sealing.
