Product introduction:

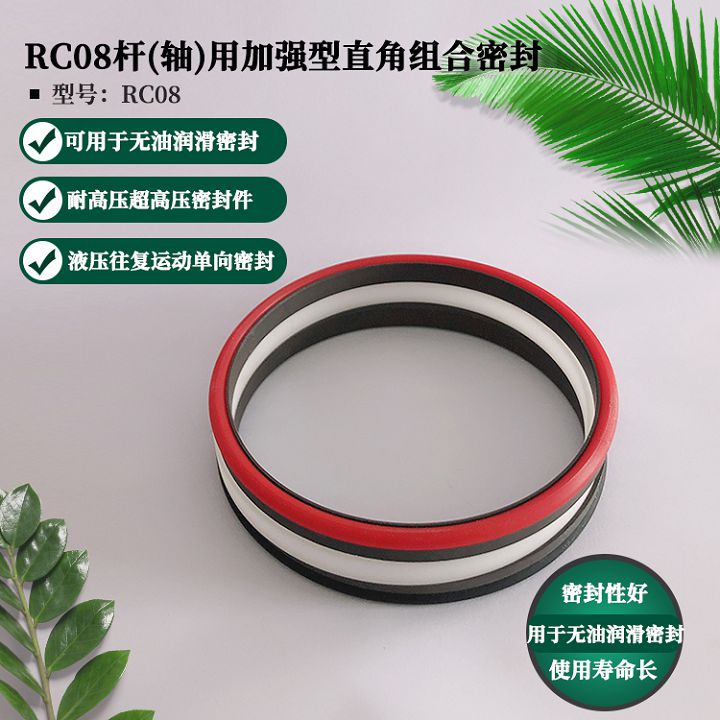

RC08/RC09 rod (shaft) reinforced right angle composite seal (ultra-high pressure/water pressure seal) is composed of a PTFE and composite reinforced right angle seal ring and an O-ring rubber ring, which is applicable to one-way hydraulic reciprocating seal. According to different supporting O-rings, they are divided into RC08 series and RC09 series (supporting GB1235 series O-rings). Because the thickness of the sealing ring is optimized, it has good functions even in water pressure or other low viscosity media. The structural design of the reinforced sealing ring also improves the ability of the sealing element to withstand high pressure and ultra-high pressure. Generally, it cannot be installed in closed groove.

Product features:

1. Low friction, small starting resistance, smooth movement, equal dynamic and static friction, no creeping;

2. Long life, can be used for oil-free lubrication seal;

3. It can be used for sealing low viscosity media such as high pressure, ultra-high pressure and water.
